12V 10A 1-Bank Battery Charger
SKU PGC-110
Smart charging that stays on board.
1-bank onboard charger.
Output: 10A x 1.
Charges Lead Acid/AGM/Lithium.
A matched charging profile for each battery type.
Waterproof IP68 rating.
Sealed for permanent mounting in your boat.
U.S.-based support.
Charging expertise since 1980, with a team you can call.
Complete your setup
Fits the PGC-110-
AC Receptacle · SinglePlug in your on-board charger from outside the boat.
$28.99
-
DC Cable Extender · 5 ftExtends charger leads to a distant battery.
$33.99
-
12V 100AH Group 24 LiFePO4A Pro-Guide battery that matches it.
$699.99

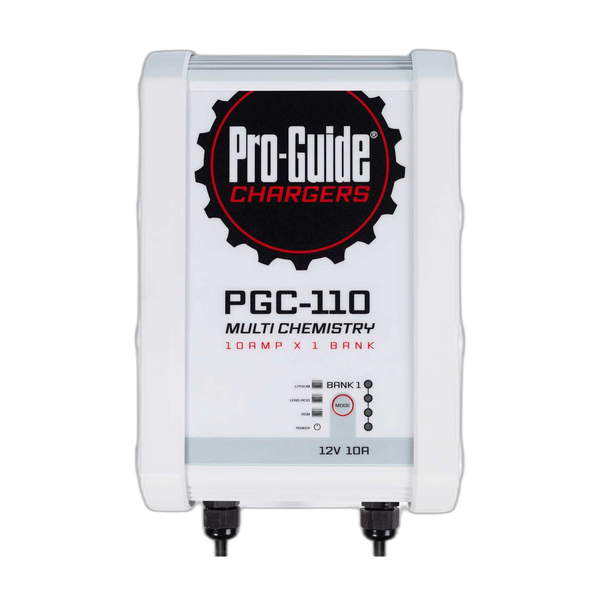

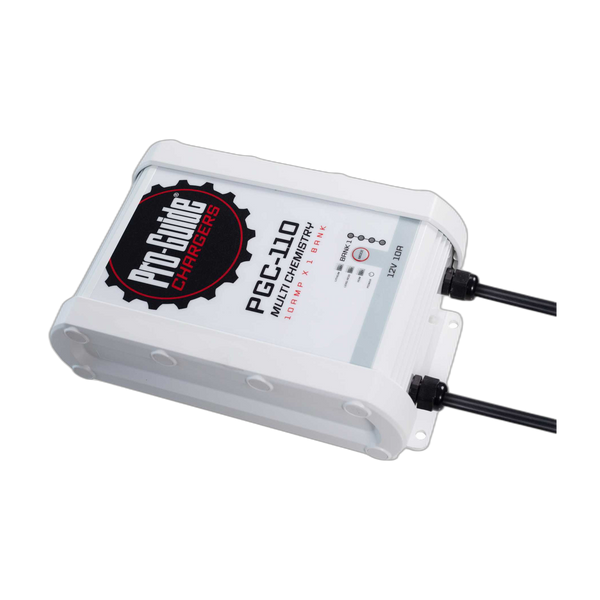

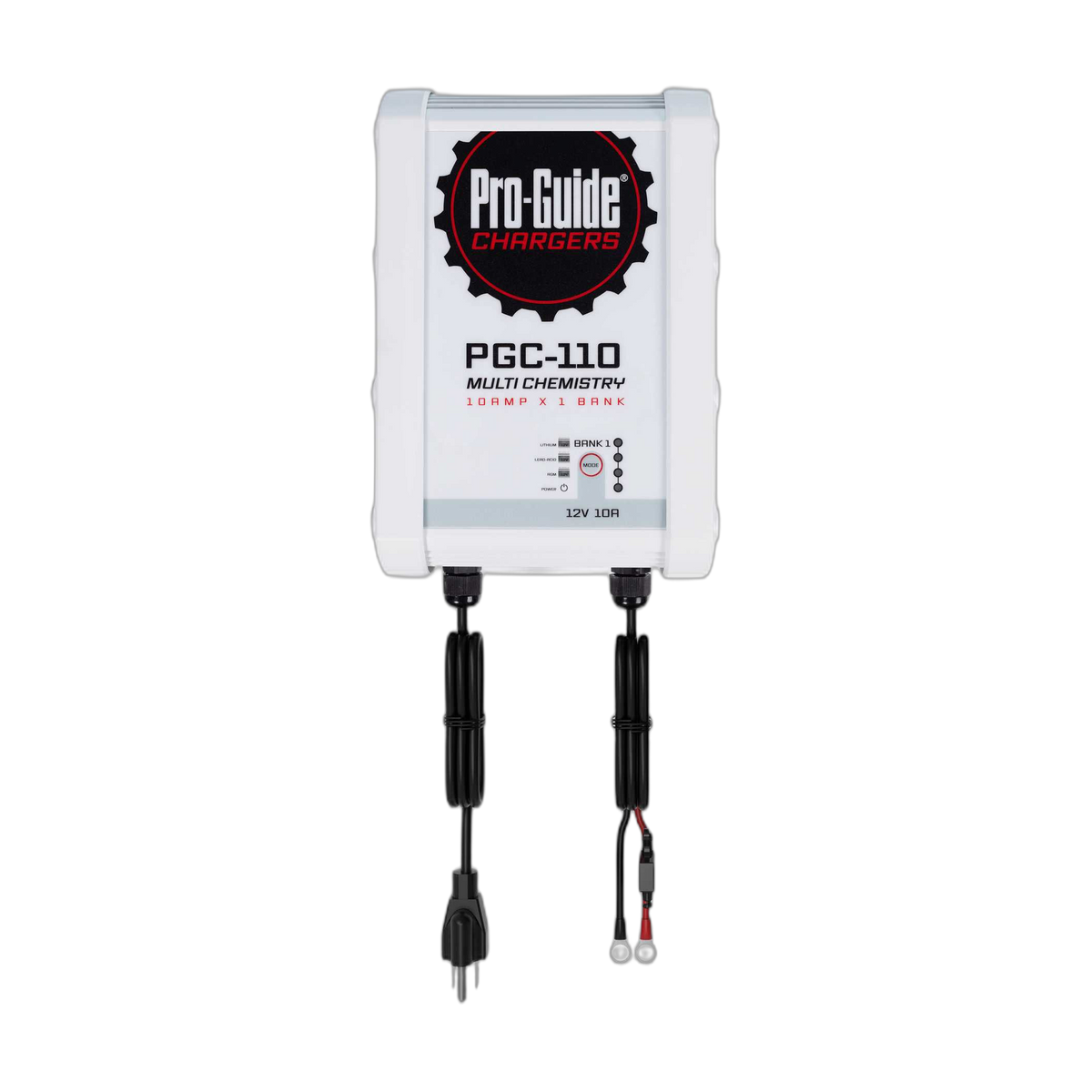

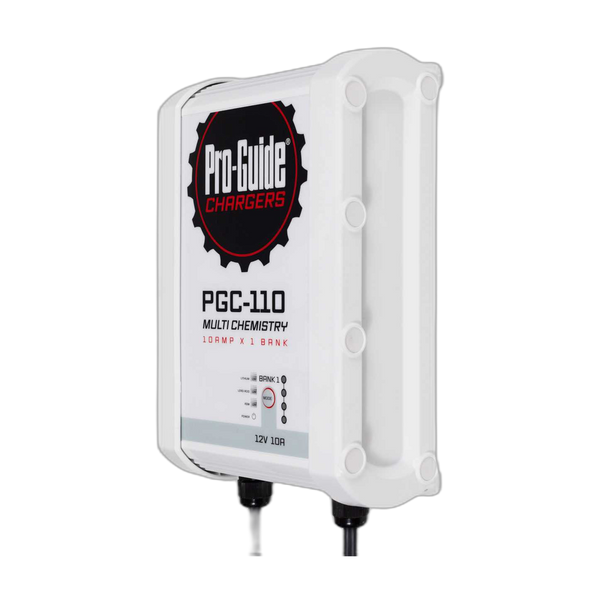

The Pro-Guide PGC-110 is a 12V Lead Acid / AGM / Lithium on-board battery charger.
12V LEAD ACID // 12V AGM // 12V LITHIUM // ACTIVATE MODE
Each Bank can select one of three charge profiles and allows the consumer to mix and match for their optimum setup.
Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.
The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline ensuring that you’ll be fully charged for your next adventure.
With over 40 years of experience, Pro-Guide is proud to stand behind this charger. It is covered by a 2 Year Free, and 4 Year Total Warranty.
Protection:
- Output Over-Voltage
- Output Over Current
- Output Short Circuit
- Output Reverse Polarity
- Over Temperature
Input:
- Input Voltage: AC 110-120V
- Frequency: 60Hz
- Input Current: <6A
- Weight: 9.5lbs / 4.3kg
- Backed by 45 years of battery expertise and US-based support you can actually reach.
- 24 Month Free Replacement Warranty & 48 Month Total Warranty.
| Battery Type | Lead Acid/AGM/Lithium |
|---|---|
| Output Voltage | DC 12V x 1 |
| Max Output Voltage | 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery |
| Output Current | 10A x 1 |
| Length (in / mm) | 6.02in / 153mm |
| Width (in / mm) | 9.96in / 253mm |
| Height (in / mm) | 3.86in / 98mm |
| Weight (lbs / kg) | 9.5lbs / 4.3kg |
| IP Rating | 68 |
Shipping
Free ground shipping on this item, typically delivered within 24 to 48 hours. Oversized and freight items note any exception on the product page itself.
Warranty
24 Month Free Replacement Warranty & 48 Month Total Warranty.
Register your battery online to activate coverage. Full terms are on the warranty information page.
Downloadable Resources

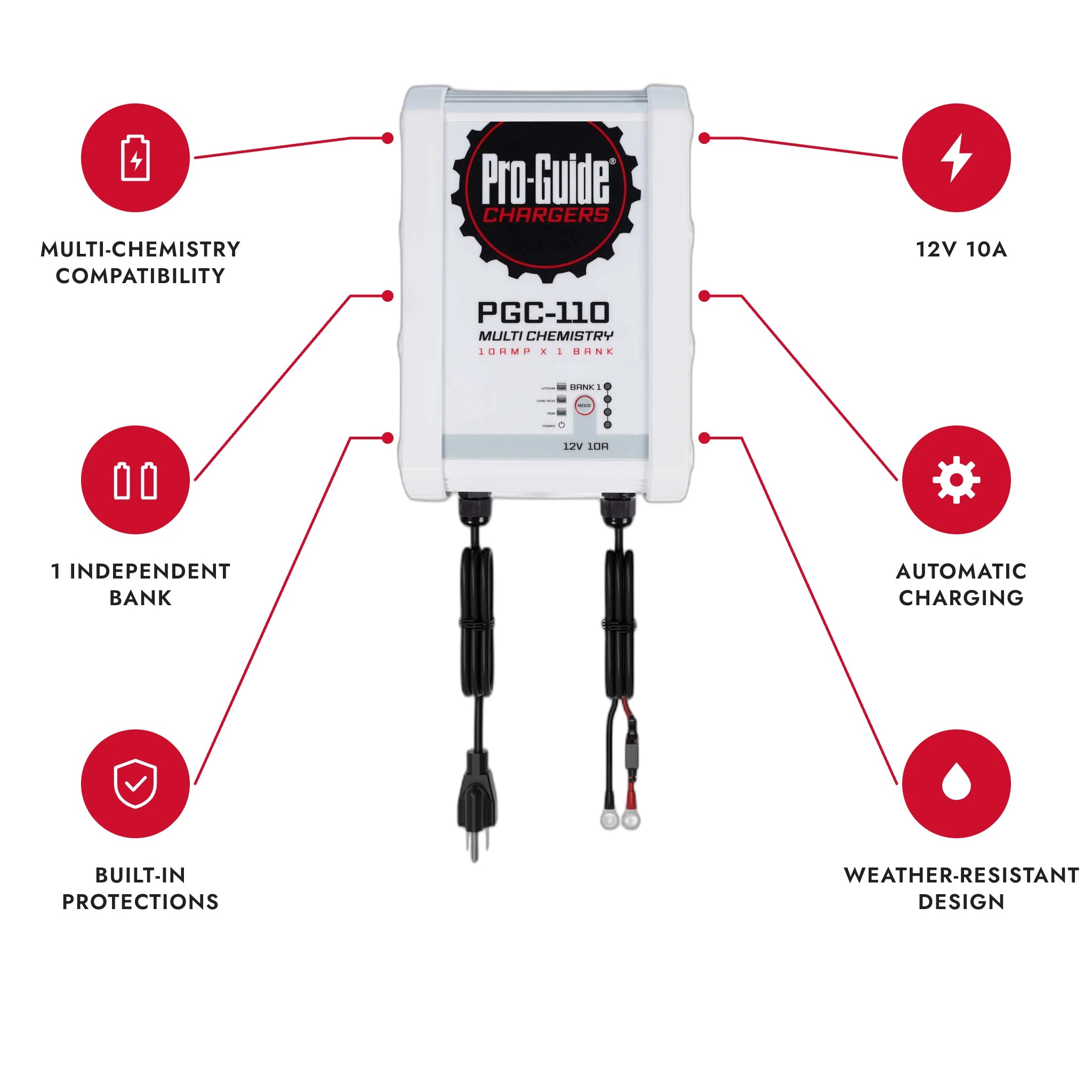

At a Glance
Frequently Asked Questions
How do I choose the right Pro-Guide charger?
Match the charger's supported battery chemistry, system voltage, number of banks and charging amperage to your battery setup.
What does “bank” mean on a battery charger?
Each bank is an independent charging output. A two-bank charger can charge two compatible battery circuits, while a three-bank charger can charge three.
Can one charger charge different battery types?
Some Pro-Guide chargers offer selectable charge profiles on individual banks. Compatibility varies by model, so check the charger's specifications for supported chemistries and voltages.
How long will it take to charge my battery?
Approximate charging time depends on battery capacity, charger output and how deeply the battery has been discharged. As a basic estimate, divide the amp-hour capacity that needs to be replaced by the charger's amperage. Actual charging time can vary as the charger completes its charging stages.
Can I permanently install the charger in my boat?
Pro-Guide on-board chargers are designed for installed applications when mounted according to the product instructions. Follow all mounting, ventilation and wiring requirements provided with the charger.
