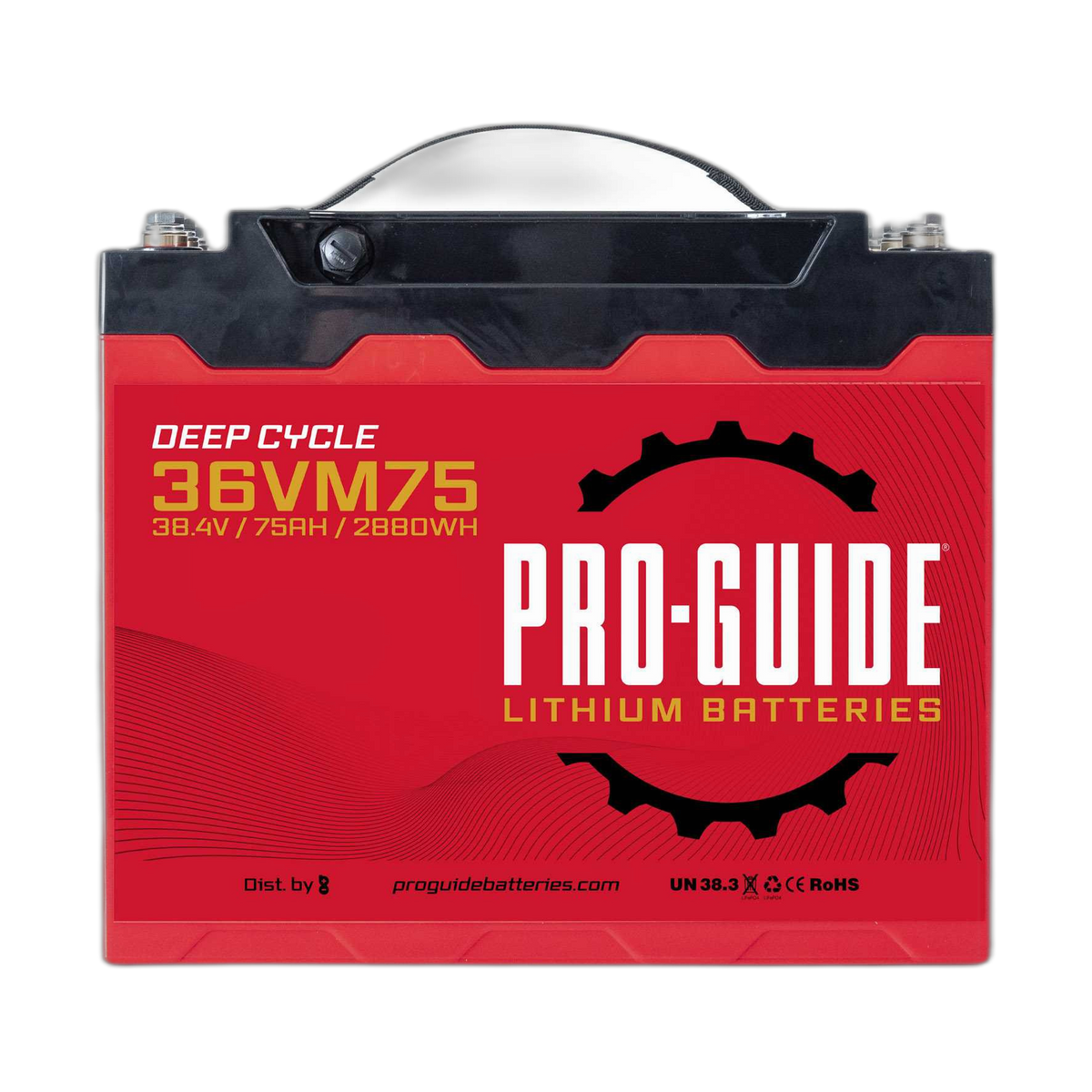

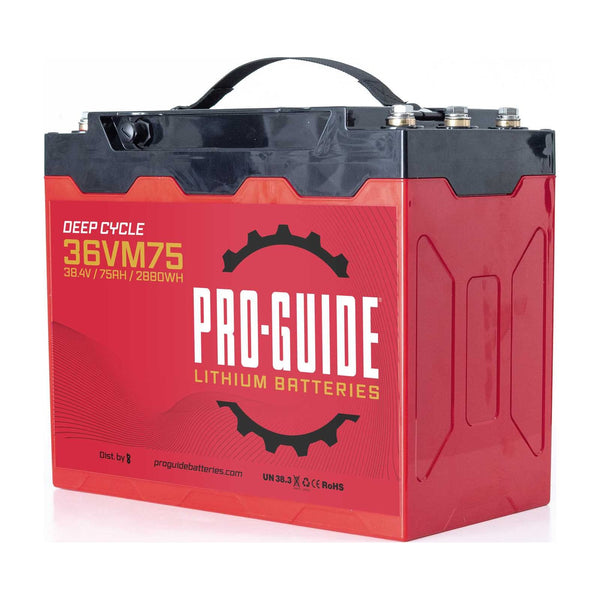

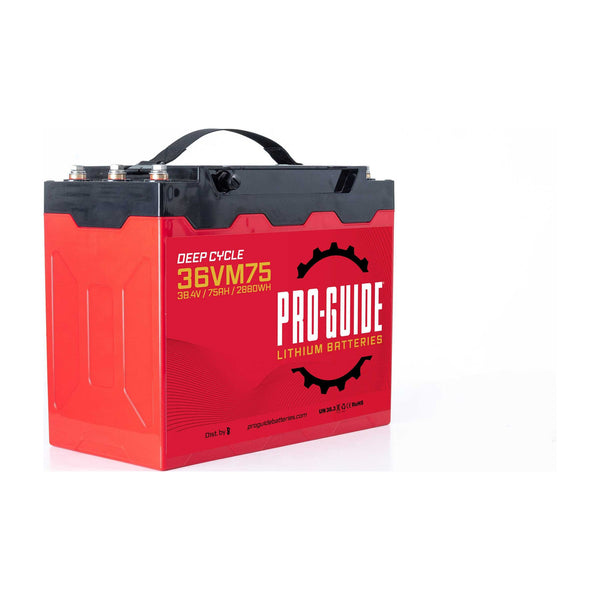

36V 75AH Group 31 (Tall) LiFePO4 Deep Cycle Battery
SKU PGL36VM75
- Trusted by professionals
- Lightweight design
- Maintenance-free operation
Compact size. Lightweight lithium power.
75Ah capacity, just 50.71 lbs.
Deep-cycle power in a compact Group 31 (Tall) case.
Maintenance-free operation.
No watering or routine electrolyte checks.
Built-in battery protection.
Helps protect against overcharging, over-discharging and short circuits.
U.S.-based support.
Battery expertise since 1980, with a team you can call.
As low as$125/mo with
Complete your setup
Fits the PGL36VM75
The Pro-Guide PGL36VM75 deep-cycle lithium battery is designed specifically for trolling motors and heavy-duty marine applications. It provides 75 amp-hours (2880 watt-hours) of consistent energy, IP67 waterproof and dust-resistant protection, Bluetooth connectivity for precise monitoring, and a robust 100-amp BMS. The battery’s innovative Pro-Boost mode offers a 10% capacity reserve, ensuring reliable and sustained power during extended use.
Will it fit your setup?
Three quick checks before you order: your tray size, your cable connections and your charger. Everything you need is below.
Dimensions
- Length
- 13.07in / 332mm
- Width
- 6.93in / 176mm
- Height
- 10.83in / 275mm
- Weight
- 50.71lbs / 23kg
- Group size
- 31 (Tall)
Measure your battery tray or the battery you are replacing. If your tray takes a Group 31 (Tall) battery this size, it drops in with no tray modification needed.
What you'll need to install
A Group 31 (Tall) tray or battery box
Secure the battery so it can't shift in use.
Your existing battery cables
Reuse them if the cable ends fit the battery's terminals (3 x Internal Thread (M8)).
A lithium-compatible charger
Lithium needs a LiFePO4 charging profile. The 36V 15A Lithium Battery Charger in Complete your setup has it.
Basic hand tools
A wrench or socket for the terminal hardware.
Still not sure? Our US-based team will check it with you. 1-800-827-3232
- Weight: 50.71lbs / 23kg
- Built-in battery management system protects against over-charge, over-discharge and short circuit.
- Drop-in replacement when the group size and dimensions match your tray — no tray modification needed.
- Backed by 45 years of battery expertise and US-based support you can actually reach.
- 60 Month Free Replacement Warranty & 120 Month total Pro-Rata.
| Group Size | 31 (Tall) |
|---|---|
| Voltage | 36 |
| Cold Cranking Amps (CCA) | N/A |
| Marine Cranking Amps (MCA) | N/A |
| Amp Hours | 75AH |
| Watt Hours | 2880WH |
| Charge Current (Standard / Max) | 10-15A / 37.5A |

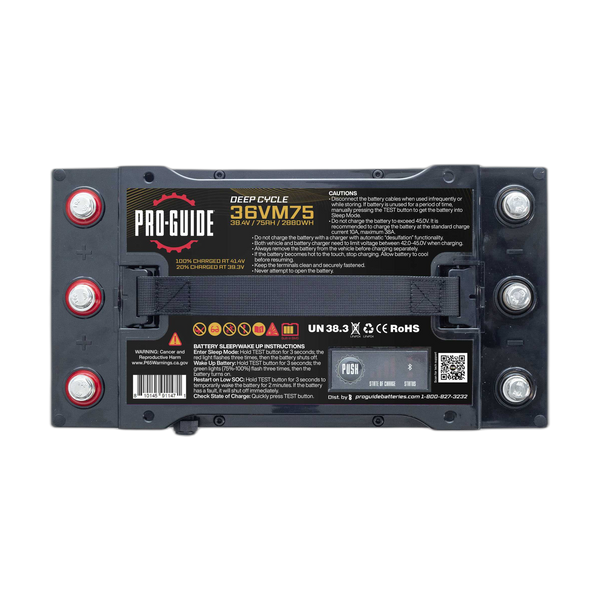

| Terminal Type | 3 x Internal Thread (M8) |
| Weight (lbs / kg) | 50.71lbs / 23kg |
| Length (in / mm) | 13.07in / 332mm |
| Width (in / mm) | 6.93in / 176mm |
| Height (in / mm) | 10.83in / 275mm |
| Bluetooth | Enabled |
| Heating | Enabled |
| NMEA 2000 | Compatible |
Shipping
Free ground shipping on this item, typically delivered within 24 to 48 hours. Oversized and freight items note any exception on the product page itself.
Warranty
60 Month Free Replacement Warranty & 120 Month total Pro-Rata.
Register your battery online to activate coverage. Full terms are on the warranty information page.
Downloadable Resources
Frequently Asked Questions
How do I know whether I need a 36V, 48V or 72V battery?
Match the battery voltage to your golf cart's electrical system. A 36V cart requires a compatible 36V system, a 48V cart requires 48V and a 72V cart requires 72V. Do not change system voltage without confirming compatibility with the controller, motor and other components.
Can lithium batteries replace my existing lead-acid golf cart batteries?
In many carts, yes. Converting to lithium can reduce weight and provide greater usable capacity, but voltage, charger compatibility, physical fit, wiring and controller requirements must be checked.
Do I need a new charger when converting my golf cart to lithium?
A lithium-compatible charger matched to the battery voltage and charging requirements is recommended. Do not assume the original lead-acid charger is compatible.
How far can I drive on one charge?
Range varies based on battery capacity, vehicle weight, terrain, tire pressure, driving speed, accessories and driving style. Higher amp-hour capacity generally provides greater available driving range.
Does lithium improve golf cart performance?
Reducing battery weight can improve efficiency and vehicle responsiveness. Lithium batteries also maintain more consistent voltage through the discharge cycle compared with traditional lead-acid batteries.
