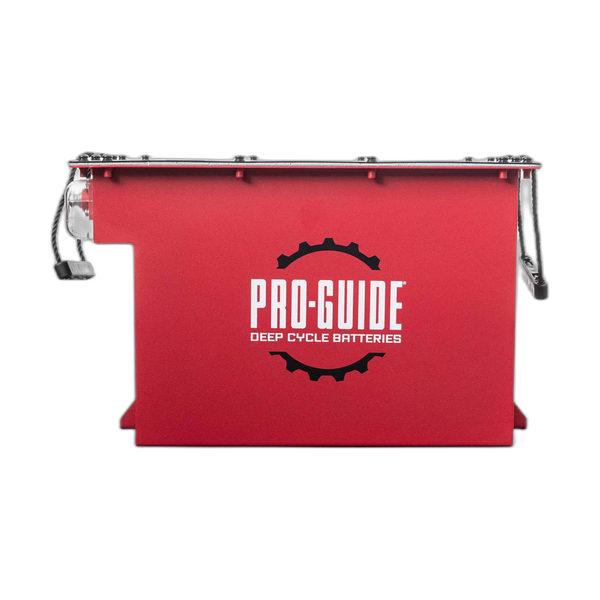

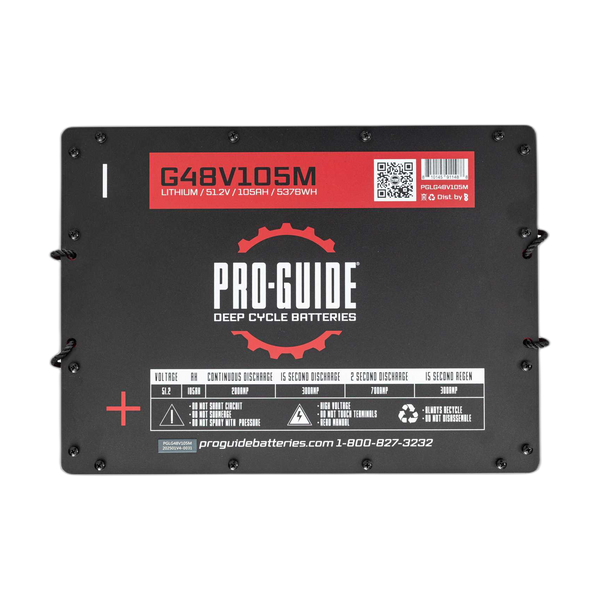

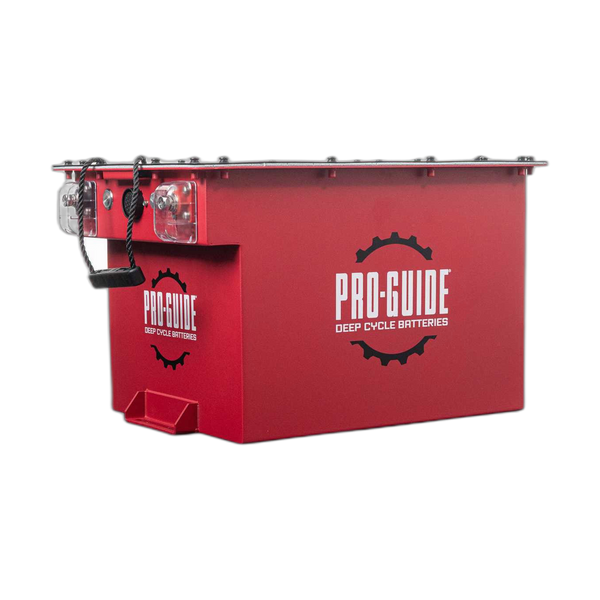

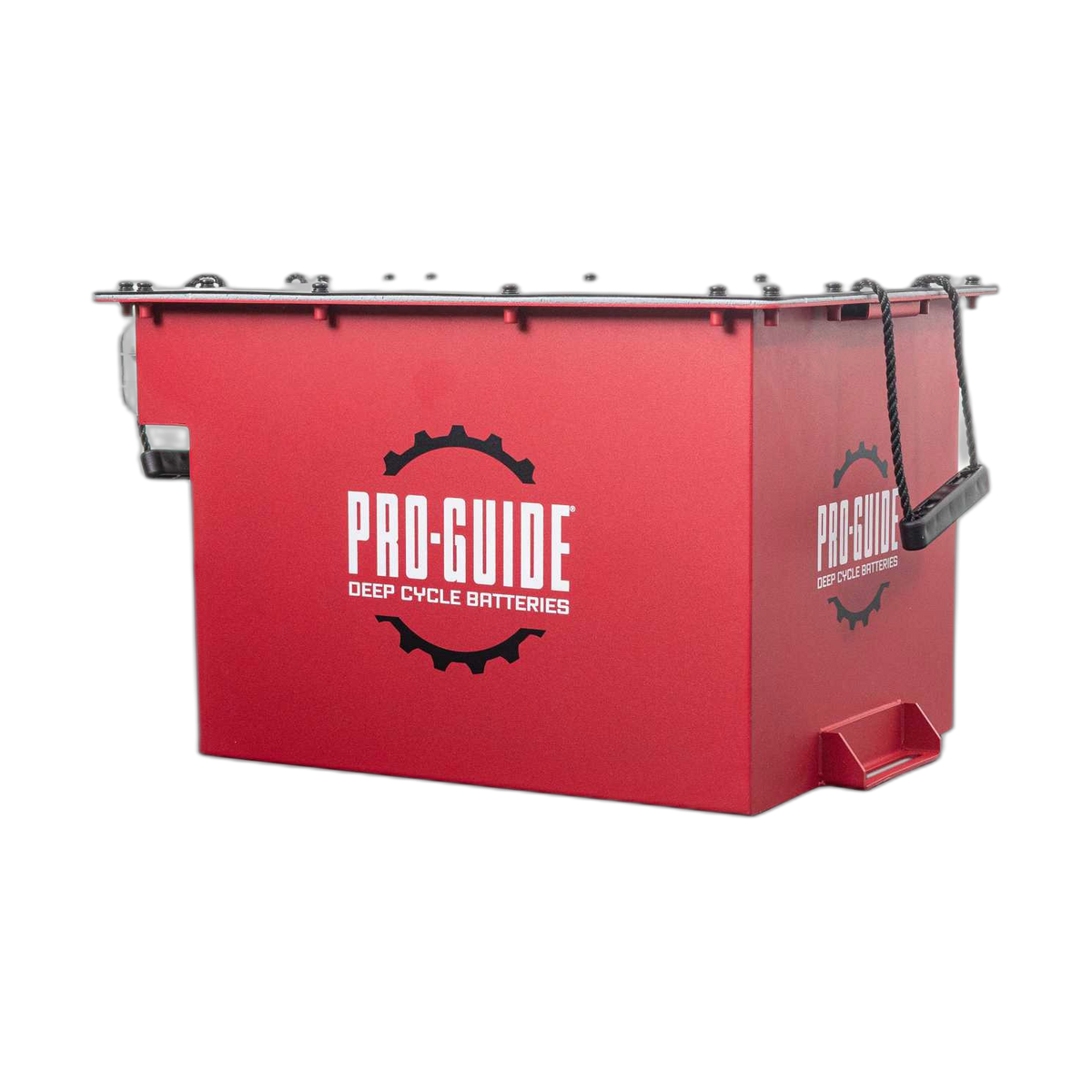

48V 105Ah Mini Lithium Golf Bundle
SKU PGLG48V105M
Compact size. Lightweight lithium power.
105Ah capacity, just 99.2 lbs.
Deep-cycle power in a compact case.
Maintenance-free operation.
No watering or routine electrolyte checks.
Built-in battery protection.
Helps protect against overcharging, over-discharging and short circuits.
U.S.-based support.
Battery expertise since 1980, with a team you can call.
As low as$209/mo with
Complete your setup
Fits the PGLG48V105M-
Club Car DS BracketMounts the battery in a Club Car DS.
$29.99
-
Club Car DS ReceptacleCart-specific charging port.
$29.99
Pro-Guide Lithium // G48V105M

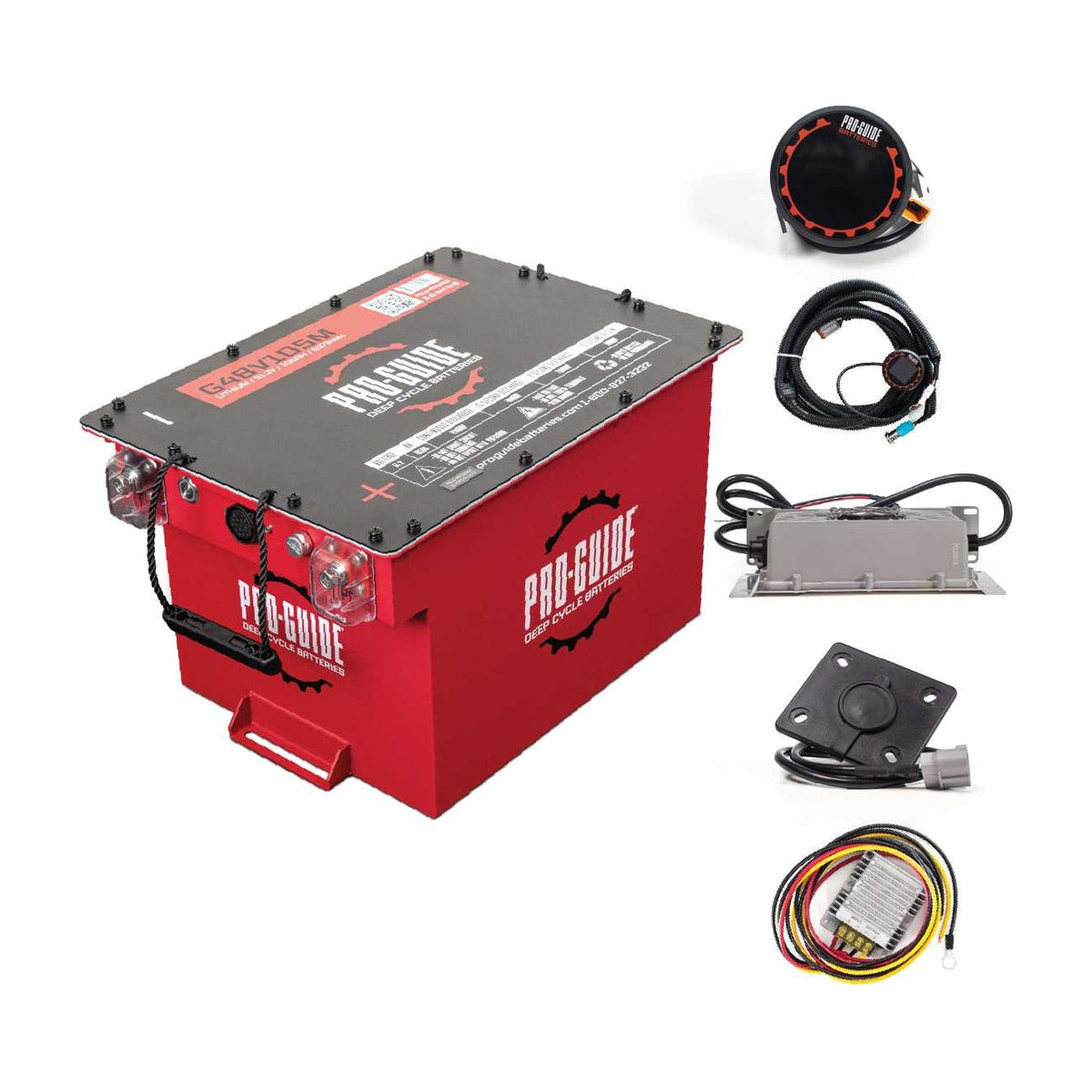

What Is Included In This Bundle?
- 48V 105AH Mini LiFePO4 Battery
- 48V 15AMP Lithium Battery Charger
- Power Harness with Dash Mounted State of Charge (SOC) Gauge & ON/OFF Button
- 30-60V to 12V DC to DC Voltage Converter
- 110V Universal Power Receptacle
- AC Power Extension Cord
What Is The Core Attributes?
- 10 Year Warranty: We proudly provide an extensive 10-year comprehensive warranty on our products, ensuring long-term peace of mind for our customers.
- Bluetooth Enabled and an Intuitive Mobile App: Provides seamless access to critical battery data, including state of charge, cell voltage, and usage cycles.
- 3500+ cycles @ 80% DOD: You get a battery that performs at a high level over its whole lifespan.
- High Quality Battery Management System (BMS): Designed to manage and safeguard rechargeable batteries by monitoring overcharging, overdischarging, overcurrent, short circuit, over/under temperature, cell balancing, and more to protect your investment.
- 7 Day Sleep Timer: Forgot to turn off the battery? No problem! The G48V105M will shut off automatically to keep the battery from self discharging over time.
- Built in Cell Frame: Keeps the G48V105M's cells protected of vibrations and improves the life span of the battery, sheltering it from the wear and tear that can cause other batteries to break down faster.
- Power Perfected Since 1980: With almost 45 years of service we have a blend of tradition and modernity, offering trusted expertise while continually adapting to remain at the forefront of its industry.
When you want a battery that will support you on all your adventures, big and small, nothing performs quite as well as the Pro-Guide Lithium G48V105M Battery. This deep cycle battery features an ideal mix of performance (certified up to 3500 cycles) and capacity (105 Ah) to go along with a lightweight (just 99 pounds!), stable design. For a safer, stable battery that will let you enjoy the most out of your activities, trust in the Pro-Guide Lithium G48V105 Battery. Order yours today.
Mounting brackets for Club Car, EZGO, & Yamaha sold separately. 110V Power receptacles for Club Car DS and Precedent sold separately.

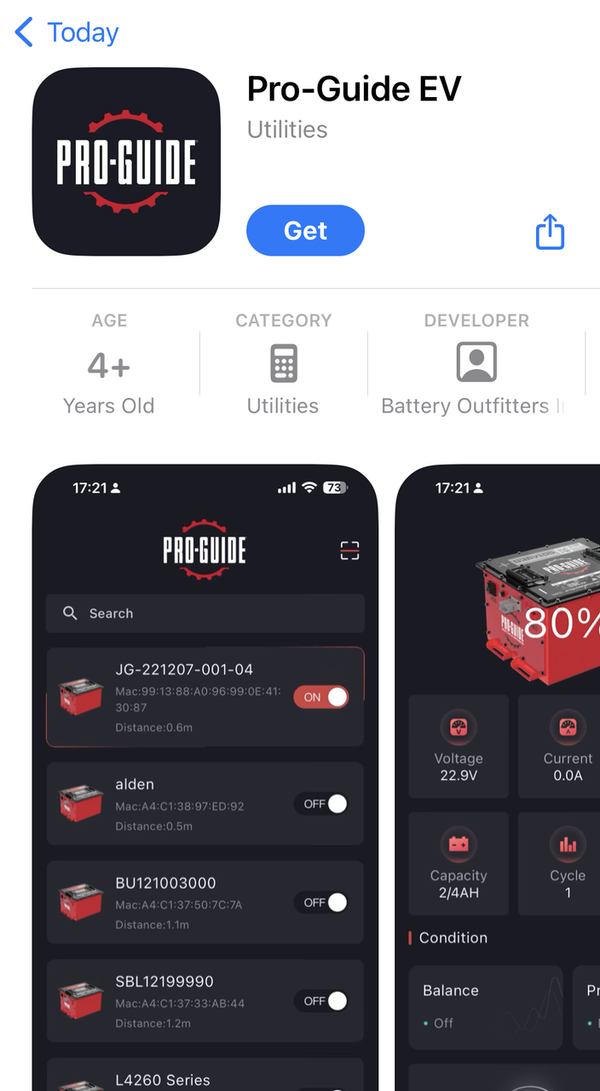

Download the Pro-Guide EV app to keep to date with the health of your G48V105M!
Will it fit your setup?
Three quick checks before you order: your tray size, your cable connections and your charger. Everything you need is below.
Dimensions
- Length
- 17.2in / 436mm
- Width
- 12.4in / 314mm
- Height
- 10.8in / 275mm
- Weight
- 99.2lbs / 45kg
Measure your battery tray or the battery you are replacing and check it against these dimensions before you order.
What you'll need to install
A tray or hold-down sized for this battery
Secure the battery so it can't shift in use.
Your existing battery cables
Reuse them if the cable ends fit the battery's terminals (M8 IT).
A lithium-compatible charger
Lithium needs a LiFePO4 charging profile.
Basic hand tools
A wrench or socket for the terminal hardware.
Still not sure? Our US-based team will check it with you. 1-800-827-3232
- Weight: 99.2lbs / 45kg
- Backed by 45 years of battery expertise and US-based support you can actually reach.
- 60 Month Free Replacement Warranty & 120 Month total Pro-Rata.
| Group Size | N/A |
|---|---|
| Voltage | 48 |
| Amp Hours | 105AH |
| Watt Hours | 5376WH |
| Charge Current (Standard / Max) | 15A-50A / 100A |
| Terminal Type | M8 IT |
| Weight (lbs / kg) | 99.2lbs / 45kg |
| Length (in / mm) | 17.2in / 436mm |
| Width (in / mm) | 12.4in / 314mm |
| Height (in / mm) | 10.8in / 275mm |
| Bluetooth | Enabled |
Shipping
Free ground shipping on this item, typically delivered within 24 to 48 hours. Oversized and freight items note any exception on the product page itself.
Warranty
60 Month Free Replacement Warranty & 120 Month total Pro-Rata.
Register your battery online to activate coverage. Full terms are on the warranty information page.
Downloadable Resources
Frequently Asked Questions
What do I need to convert my golf cart to lithium?
At minimum, the battery system must be compatible with the cart's voltage and electrical system. Depending on the cart, the conversion may also require a compatible charger, cables, mounting components or other accessories.
How do I know which kit fits my golf cart?
Start with your cart's system voltage, make/model and available battery compartment dimensions. Confirm these against the specifications of the conversion kit.
Is a lithium charger included?
Check the individual kit's “What's Included” section. If a charger is included, its model should be clearly identified.
Will I need to modify my battery tray?
Some carts may require mounting adjustments because lithium battery dimensions can differ from the original lead-acid battery bank.
Will converting to lithium reduce the weight of my golf cart?
Typically yes. Lithium battery systems are generally substantially lighter than equivalent lead-acid battery banks.
