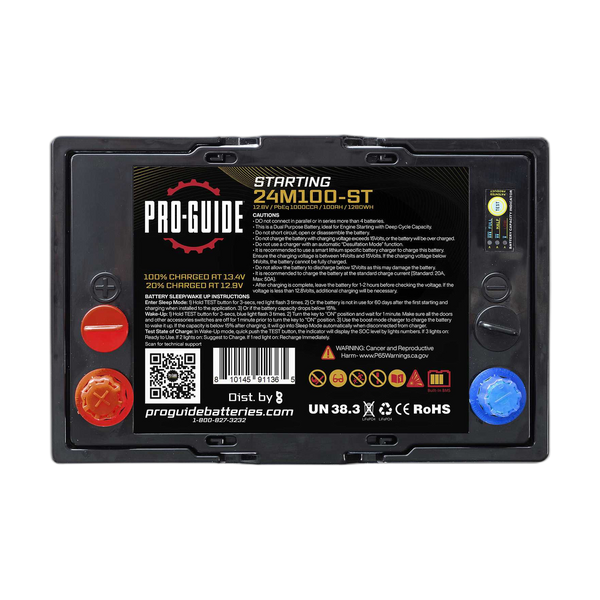

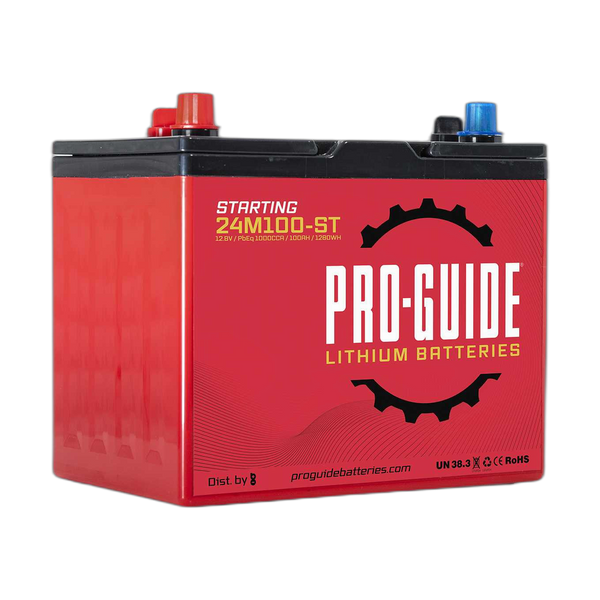

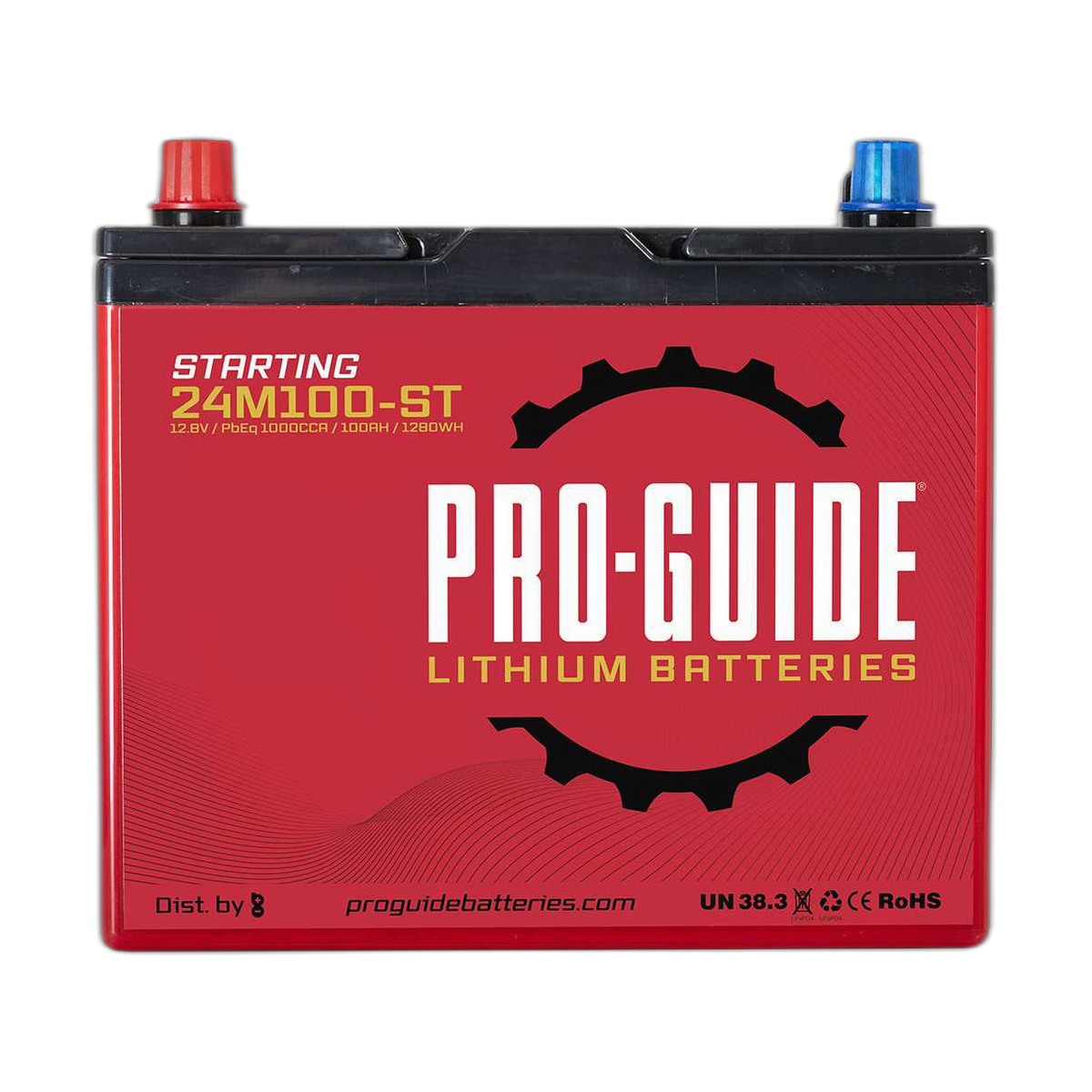

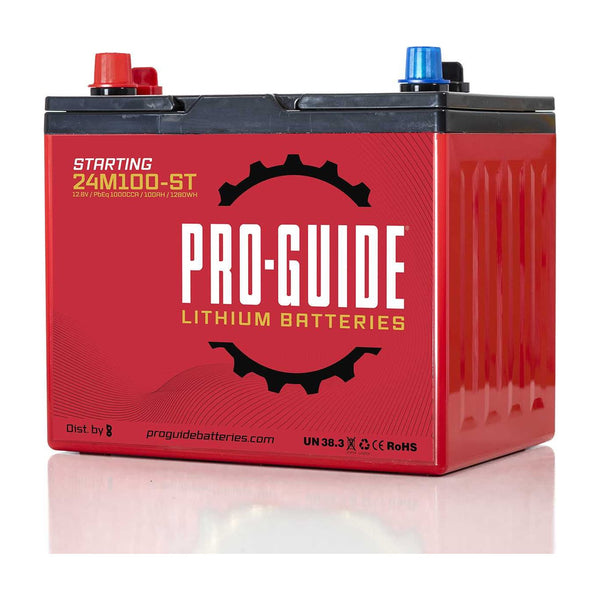

12V 100AH Group 24 LiFePO4 Starting Battery
SKU PGL24M100-ST
- Trusted by professionals
- Lightweight design
- Maintenance-free operation
Compact size. Lightweight lithium power.
100Ah capacity, just 28.7 lbs.
Starting power in a compact Group 24 case.
Maintenance-free operation.
No watering or routine electrolyte checks.
Built-in battery protection.
Helps protect against overcharging, over-discharging and short circuits.
U.S.-based support.
Battery expertise since 1980, with a team you can call.
As low as$75/mo with
Complete your setup
Fits the PGL24M100-ST-
PGC-116 On-Board Charger · 12/16VOn-board charging with lithium and AGM profiles.
$179.99
-
NOCO Battery Box · Group 24Sized to a Group 24 battery.
$19.99
-
NOCO Battery Tray · Group 24Holds a Group 24 battery secure.
$9.99
-
NOCO Jump Starter · 12V 1000APortable backup start if a battery runs flat.
$119.99
Pro-Guide Lithium // 24M100-ST STARTING BATTERY
- Exceeds All Mercury Lithium Starting Battery Requirements
- ProBoost
- 1000 PbEq CCA / 100AH: Powering (2-3) 12” Graphs & live scope all day on the water
- Brass Dual-Terminals
Introducing the all-new Pro-Guide Lithium 24M100-ST Starting Battery, the perfect starting battery for the most extreme anglers.
With 1000 PbEq CCA's and 100AH’s this battery is designed to power your Outboard, and keep up to (2-3) 12" graphs and live scope running all day on the water. The innovative "ProBoost" feature provides built-in jump starting, so you'll never have to worry about being stranded by a dead battery again. The brass terminals ensure a secure connection, and the battery meets all Mercury Lithium Starting Requirements. Trust Pro-Guide Battery to keep you powered up and ready to hit the water at a moment's notice.
Will it fit your setup?
Three quick checks before you order: your tray size, your cable connections and your charger. Everything you need is below.
Dimensions
- Length
- 10 1/4in / 260.4mm
- Width
- 6 13/16in / 173mm
- Height
- 9 1/4in / 209.6mm
- Weight
- 28.7lbs / 13kg
- Group size
- 24
Measure your battery tray or the battery you are replacing. If your tray takes a Group 24 battery this size, it drops in with no tray modification needed.
What you'll need to install
A Group 24 tray or battery box
The matching box and tray are in Complete your setup.
Your existing battery cables
Reuse them if the cable ends fit the battery's terminals (1 SAE Post, 1 Stud terminal).
A lithium-compatible charger
Lithium needs a LiFePO4 charging profile.
Basic hand tools
A wrench or socket for the terminal hardware.
Still not sure? Our US-based team will check it with you. 1-800-827-3232
- Weight: 28.7lbs / 13kg
- Built-in battery management system protects against over-charge, over-discharge and short circuit.
- Drop-in replacement when the group size and dimensions match your tray — no tray modification needed.
- Backed by 45 years of battery expertise and US-based support you can actually reach.
- 36 Month Free Replacement Warranty & 120 Month total Pro-Rata.
| Group Size | 24 |
|---|---|
| Voltage | 12 |
| Cold Cranking Amps (CCA) | PbEq 1000 CCA |
| Marine Cranking Amps (MCA) | N/A |
| Amp Hours | 100AH |
| Watt Hours | 1280WH |
| Charge Current (Standard / Max) | 10A / 50A |
| Terminal Type | 1 SAE Post, 1 Stud terminal |
| Weight (lbs / kg) | 28.7lbs / 13kg |
| Length (in / mm) | 10 1/4in / 260.4mm |
| Width (in / mm) | 6 13/16in / 173mm |
| Height (in / mm) | 9 1/4in / 209.6mm |
Shipping
Free ground shipping on this item, typically delivered within 24 to 48 hours. Oversized and freight items note any exception on the product page itself.
Warranty
36 Month Free Replacement Warranty & 120 Month total Pro-Rata.
Register your battery online to activate coverage. Full terms are on the warranty information page.
Downloadable Resources
Frequently Asked Questions
What is a lithium starting battery designed to do?
A lithium starting battery is designed to deliver the high burst of current required to start an engine or motor. It is optimized differently from a battery designed primarily for long-duration deep cycling.
How do I know if this battery will start my engine?
Compare the battery's cranking specifications with the minimum requirements provided by your engine manufacturer. Voltage, cranking output, physical dimensions and terminal orientation should all be confirmed before purchase.
Can I use a starting lithium battery as a deep-cycle battery?
Starting batteries are primarily designed for engine starting. If you also need significant capacity for electronics, trolling motors or other continuous loads, a dual-purpose or deep-cycle model may be more appropriate.
Can it power my fish finders and electronics?
Some starting batteries can support auxiliary electronics, but the amount of available runtime depends on the battery's capacity and the combined load of your equipment. For high electronics demand, consider a dual-purpose battery.
Can I use my existing charger?
Possibly, depending on the charger. Confirm that its charging voltage and profile are compatible with the requirements of your Pro-Guide lithium battery.
