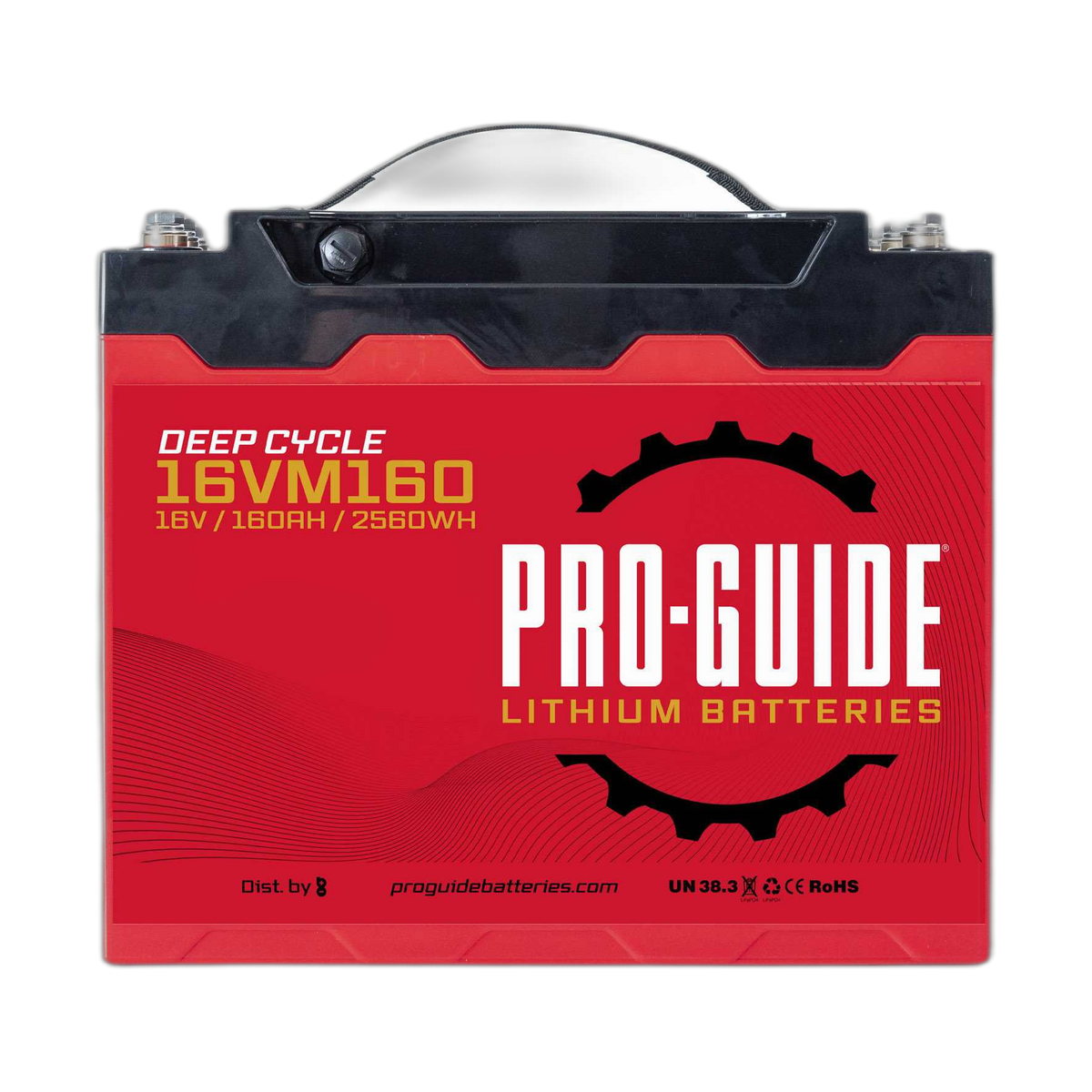

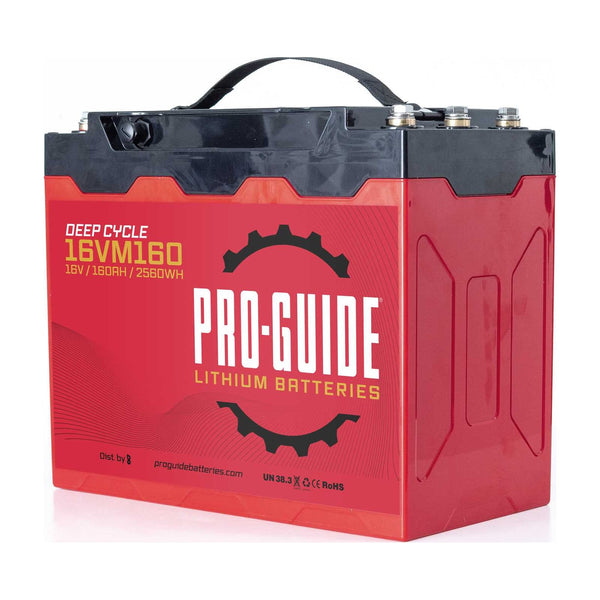

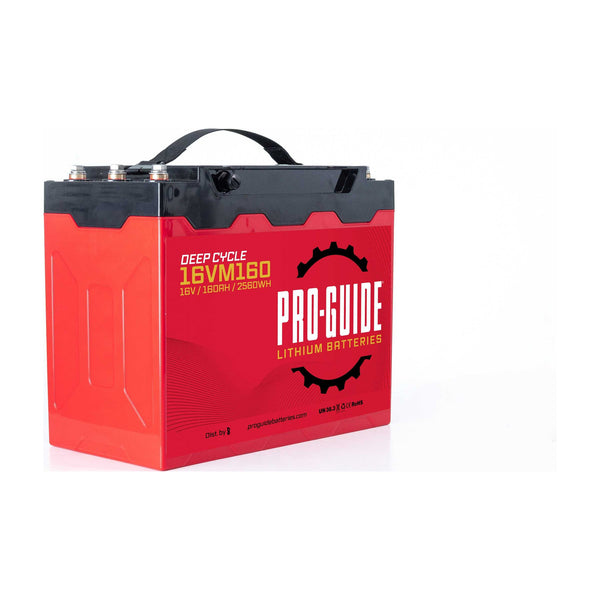

16V 160AH Group 31 (Tall) LiFePO4 Deep Cycle Battery
SKU PGL16VM160
Compact size. Lightweight lithium power.
160Ah capacity, just 44.09 lbs.
Deep-cycle power in a compact Group 31 (Tall) case.
Maintenance-free operation.
No watering or routine electrolyte checks.
Built-in battery protection.
Helps protect against overcharging, over-discharging and short circuits.
U.S.-based support.
Battery expertise since 1980, with a team you can call.
- 10 Year Warranty 5 years free replacement
- Free and Fast Shipping Ships within 24 hours
- Installation Support US-based battery experts
Complete your setup
Fits the PGL16VM160-
PGC-116 On-Board Charger · 12/16VOn-board charging with lithium and AGM profiles.
$179.99
-
NOCO Battery Tray · Group 31Holds a Group 31 battery secure.
$9.99
-
Bass Tank Power Harness · SingleClean power to your graphs, no voltage drop.
$199.99
Pro-Guide 16VM160: 16V 160Ah Lithium for Marine Electronics
The Pro-Guide 16VM160 (PGL16VM160) is a 16V, 160Ah LiFePO4 deep cycle battery that stores 2,560Wh in a Group 31 Tall case and weighs 44.09 lb. It is built for marine electronics that accept a 16V input, with Bluetooth monitoring, a built-in heater, NMEA 2000 compatibility and a Pro-Boost mode that reserves 10% of capacity.
Key specs
- Voltage and capacity: 16V nominal, 160Ah, 2,560Wh
- Cycle life: more than 3,000 cycles at 100% depth of discharge, more than 6,000 at 80%
- Discharge current: 32A standard, 100A continuous, with a 12.5V discharge cut-off
- Charge current: 10A to 32A standard, 80A maximum continuous, with an 18V charge cut-off
- Pro-Boost: reserves 10% of capacity
- Protection: IP67 rated
- Features: Bluetooth monitoring, built-in heater, NMEA 2000 compatible, state of charge gauge, BMS reset, removable handle

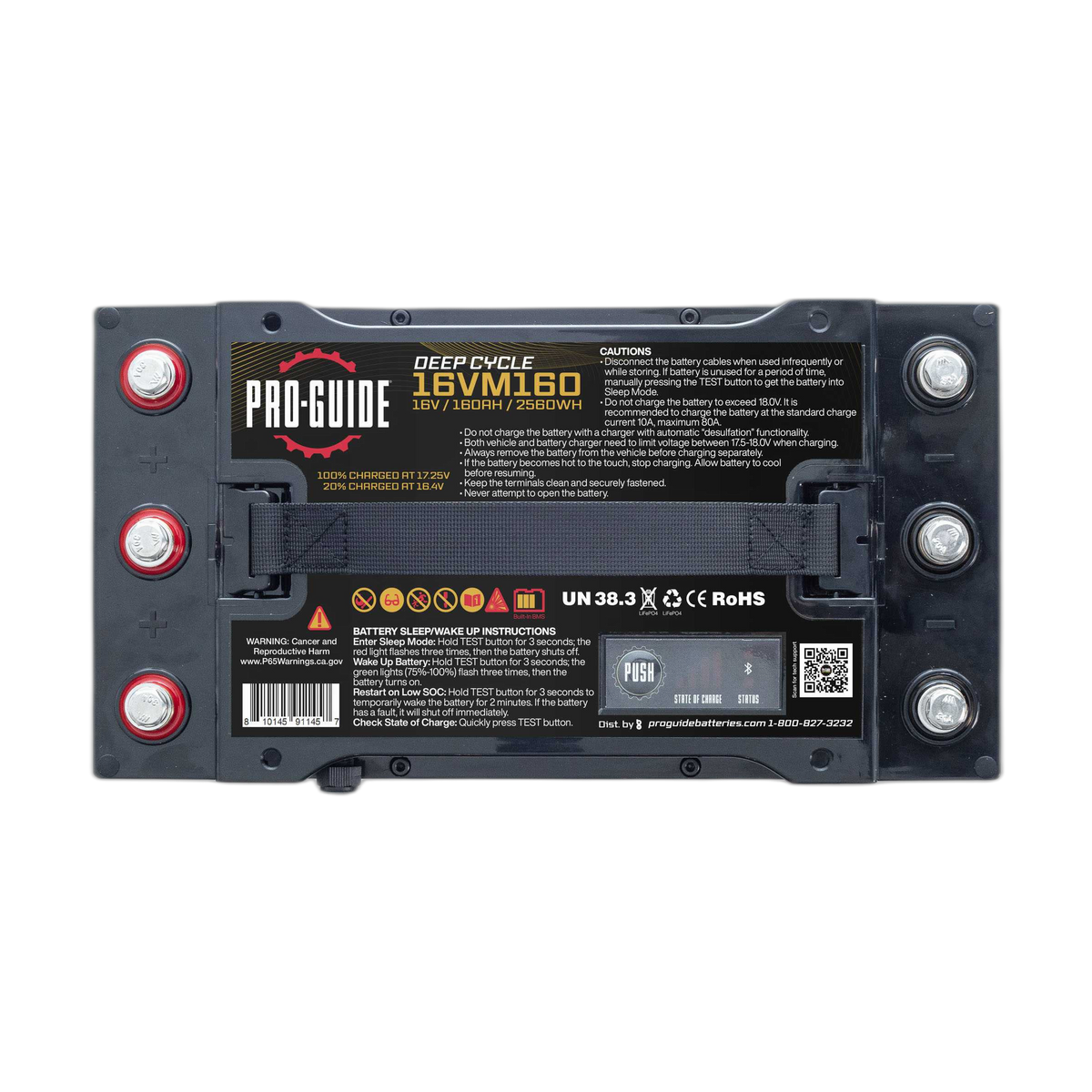

- Terminals: three M8 internal-thread terminals
- Self-discharge: 1% to 3% per month
- Size and weight: Group 31 Tall case, 13.07 in long, 6.93 in wide and 10.83 in tall, 44.09 lb
- Warranty: 5-year free replacement, 10-year pro-rata
What it's built for
Marine electronics systems that accept a 16V input. The data sheet says to use it only with marine electronics compatible with 16V inputs, so check each device's input voltage range before connecting it.
How long will it run?
For a rough estimate, divide 160Ah by your load in amps: about 80 hours at 2A, about 16 hours at 10A, and about 8 hours at 20A. Pro-Boost holds back 10% of capacity, so plan on a little less than the full figure before the reserve. Real runtime depends on the load, the temperature and how far you discharge the battery.
Why lithium instead of lead-acid or AGM?
A LiFePO4 battery holds its voltage under load, can use nearly all of its rated capacity and lasts thousands of cycles. A lead-acid or AGM battery of the same size is heavier and is usually discharged only about halfway to protect its life.
Will it fit your setup?
Three quick checks before you order: your tray size, your cable connections and your charger. Everything you need is below.
Dimensions
- Length
- 13.07in / 332mm
- Width
- 6.93in / 176mm
- Height
- 10.83in / 275mm
- Weight
- 44.09lbs / 20kg
- Group size
- 31 (Tall)
Measure your battery tray or the battery you are replacing. If your tray takes a Group 31 (Tall) battery this size, it drops in with no tray modification needed.
What you'll need to install
A Group 31 (Tall) tray or battery box
A matching tray or hold-down is in Complete your setup.
Your existing battery cables
Reuse them if the cable ends fit the battery's terminals (3 x Internal Thread (M8)).
A lithium-compatible charger
Lithium needs a LiFePO4 charging profile.
Basic hand tools
A wrench or socket for the terminal hardware.
Still not sure? Our US-based team will check it with you. 1-800-827-3232
- Weight: 44.09lbs / 20kg
- Built-in battery management system protects against over-charge, over-discharge and short circuit.
- Drop-in replacement when the group size and dimensions match your tray — no tray modification needed.
- Backed by 45 years of battery expertise and US-based support you can actually reach.
- 60 Month Free Replacement Warranty & 120 Month total Pro-Rata.
| Group Size | 31 (Tall) |
|---|---|
| Voltage | 16 |
| Cold Cranking Amps (CCA) | N/A |
| Marine Cranking Amps (MCA) | N/A |
| Amp Hours | 160AH |
| Watt Hours | 2560WH |
| Charge Current (Standard / Max) | 10-32A / 80A |
| Terminal Type | 3 x Internal Thread (M8) |
| Weight (lbs / kg) | 44.09lbs / 20kg |
| Length (in / mm) | 13.07in / 332mm |
| Width (in / mm) | 6.93in / 176mm |
| Height (in / mm) | 10.83in / 275mm |
| Bluetooth | Enabled |
| Heating | Enabled |
| NMEA 2000 | Compatible |
Shipping
Free ground shipping on this item, typically delivered within 24 to 48 hours. Oversized and freight items note any exception on the product page itself.
Warranty
60 Month Free Replacement Warranty & 120 Month total Pro-Rata.
Register your battery online to activate coverage. Full terms are on the warranty information page.
Downloadable Resources
Frequently Asked Questions
How long will the Pro-Guide 16VM160 run my marine electronics?
As a rough guide, divide the 160Ah capacity by your load in amps: about 80 hours at 2A, about 16 hours at 10A, or about 8 hours at 20A. Pro-Boost reserves 10% of capacity, so usable runtime before the reserve is a little lower.
Can I use the 16VM160 with 12V electronics?
Only if they are rated for a 16V input. The data sheet says to use the 16VM160 exclusively with marine electronics systems compatible with 16V inputs, so check each device's input voltage range first.
Will the 16VM160 fit in a Group 31 battery box?
It uses a Group 31 Tall case, 13.07 in long, 6.93 in wide and 10.83 in tall. Check the height and lid clearance in your compartment, since it is taller than a standard-height Group 31 battery.
How long does it take to charge the 16VM160?
Charge time is roughly the capacity divided by the charger's output: about 5 hours from empty at 32A, the top of the 10A to 32A standard range, or about 2 hours at the 80A maximum continuous charge current. Use a 16V LiFePO4 charger with an 18V charge cut-off.
How many charge cycles does the 16VM160 last?
It is rated for more than 3,000 cycles at 100% depth of discharge and more than 6,000 cycles at 80% depth of discharge.
Can I charge the 16VM160 in cold weather?
It has a built-in heater, and the data sheet lists a charging range of -4°F to 131°F (-20°C to 55°C) and a discharging range of -4°F to 140°F (-20°C to 60°C). For storage, keep it between 23°F and 113°F (-5°C to 45°C).
Is the 16VM160 waterproof?
It carries an IP67 rating: dust-tight and protected against temporary immersion in water. Still mount it in a battery box or secured tray, as you would any marine battery.
What warranty comes with the 16VM160?
A 60-month (5-year) free replacement warranty and 120 months (10 years) of total pro-rata coverage.
What is a deep-cycle lithium battery designed for?
Deep-cycle lithium batteries are designed to provide steady power over long periods and handle repeated charge and discharge cycles. They are ideal for trolling motors, marine electronics, RVs, solar systems, fishing electronics and other applications that require sustained power.
Can this battery replace my lead-acid or AGM battery?
In many applications, yes. A LiFePO₄ battery can replace a similarly sized lead-acid or AGM battery while offering more usable capacity and less weight. Always verify voltage, physical dimensions, terminal configuration and charging compatibility before replacing your existing battery.
What charger should I use with this lithium battery?
Use a charger with a LiFePO₄-compatible charging profile that matches the voltage of your battery. Some existing chargers may be compatible, but the charging specifications should always be checked before use.
Can I connect multiple lithium batteries together?
Certain Pro-Guide lithium batteries can be connected in series or parallel depending on the model. Batteries used together should be the same model, capacity, age and state of charge. Always check the specifications for the individual battery before building a battery bank.
Can a Pro-Guide lithium battery be mounted in different positions?
Because LiFePO₄ batteries do not contain free-flowing liquid like flooded lead-acid batteries, they offer significantly more installation flexibility. Follow the mounting recommendations provided for your specific battery.
